Control Panel EC41-260-0

Name: Control Panel EC41-260-0
Brand: Online configurator
SKU: EC41-260-0
Rating: 4.6 (102 reviews)

Custom control panel consisting of 2 U-shape piece, rotated at 90°, snapped together and secured with screws. The enclosure is removable with a screwdriver.

Data sheet

MODELS		Table enclosure EC41-2xx

DESIGN CONCEPT		Custom control panels consisting of 2 U-shape piece, rotated at 90°, snapped together and secured with screws. The enclosure is removable with a screwdriver.

Your Project : For example: Wall Mount Enclosure Project X

Project Name :^* For example: Wall Mount Enclosure Project X

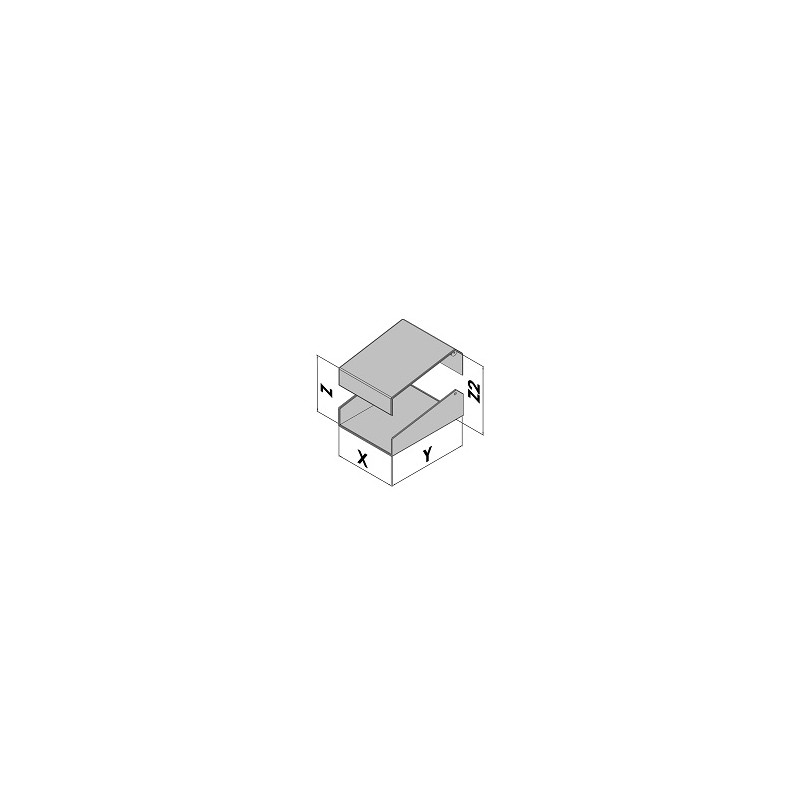

Enter your dimension (Internal Dimensions in mm)^* Attention: Internal dimensions
X
Y
Z
Z2

Material^* ABS: Standard plastic raw material made of ABS / PS-UL: plastic raw material made of flame retardant polystyrene, classified UL94V0
Insert file Any complementary information, that can help us to design your enclosure (i.e. sketches, 2D or 3D drawings, R&D product brief, images etc.)
- File 1 :
- File 2 :

Personnalisation : The information provided in this form, will allow to generate an instant quote. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.

Milling : Contrary to standard machined enclosures, the EC enclosure includes all cut-outs and necessary millings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

Nb of Drilling : (< = 5mm x 5mm) The drilling is a maching process to create a hole in a plastic piece. This hole can be used for a screw, a plug, a socket, a cable passage etc.
Nb of cutouts : (Per connectors) (> 5mm x 5mm) and < 40mm x 40mm) A cutout is created by a machining process, minimum size 5mm x 5mm and maximum size 40mm x 40mm, allowing the passage of a connector, button, divers cabeling or other usage.
Windows / openings 1 : (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[With Acrylic window in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
Windows / openings 2 : (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[With Acrylic window in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
Windows / openings 3 : (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[With Acrylic window in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.

Nb of Vents : (Based on 10 slots of 50mm ea.) A vent is a set of 10 grooves of 50mm who serves to evacuate the heat generated by the internal components. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.
Nb of marking : (Based on 1 engraved part of around 20mm) For exemple your logo or technical instructions directly milled into the raw material.
Recess 1 : (In mm) [For membrane keypad] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
Recess 2 : (In mm) [For membrane keypad] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
Recess 3 : (In mm) [For membrane keypad] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
Nb of loose parts : Loose parts are non glued mounting features for the internal equipment of the enclosure (i.e. seperation, blockage etc.)
Nb of Circuit board slot : Circuit board slots are grooves milled opposite on the internal sides into the plastic. You can slide your PCB in those grooves. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
Length of circuit board slot : Please indicate the length of the PCB groove / slot.

Mounting Features : Contrary to standard machined enclosures, the EC enclosure includes all necessary mounting features based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

Nb inserts :

An insert is a part made out of brass with a thread (M2,5 - M3), implanted in a standoff or directly in the raw material, which then allows you to fix electronic components. Its use is preconised in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.

Nb Standoffs :

A standoff is a plastic spacer tube of different dimensions, used to fix your electronic components. Its use is recommanded in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.

Nb rubber feet : To stabilize or lift your device, you can add rubber feet. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
Nb tabs/rails/spacers : Those are glued parts inside your enclosure, to either hold electronic components, which cannot be mounted on standoffs or to devide, strengthen or stabilize your enclosure.

Finish : Contrary to standard machined enclosures, the EC enclosure includes all necessary finishings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

CEM Protection : The EMI protection (Electromagnetic Interference) or conductive shield paint, is a paint, based on nickel or copper. Its application creates a Faraday screen, to protect from electric or alternatively electromagnetic externities, and vice versa stops the device from polluting its environement. It also serves to the electric continuity.
Paint : The available raw materials are either black or white, but we do offer all solutions for all finishings and colour shades (Paint: all RAL "or corresponding Panton" prepared in our work shop. Finishing: satiné).

Nb Silkscreen colors/passes : (1 pass per color and faces) Any marking is done in-house with our digital printers, allowing four-colour print. Marking of an enclosure has mainly 2 goals. Functional: Identifiation, Norms or Instructions. Aestetic: Corporate Identify of the device, embellishing or represensation of the use.
High Protection varnish : Clear strong protection varnish: For additional protection, we can apply high protection varnis (Finishing: satin)

Others operation In this section you can submit any important, additional information, not covered in the form and/or key points concerning your project (i.e. specific application or environemental conditions)

Forecast quantities Having maximum information regarding your project, allows us to provide adapted and quality advice.
